Attach the nest base pull the wires through the center of the base, then attach it to the wall with the screws. Bei den preisen gibt's nix zum raunzen!

How to Install the Google Nest Thermostat

Take two wires from the wire bundle that goes to the current thermostat and attach them to the t1 and t2 terminals on the heat link.

Nest thermostat wire base. Nest thermostat base plates vary in the number and type of wire connectors, screw hole locations, wire hole size and shape, and several other minor differences. And that's the way you should have your nest thermostat wired. Remove the thermostat from the base unit.

Replaced it, hvac guy verified all the wires were set up right, been working great for three weeks. Switch off the power supply to your furnace for your safety. Ad riesenauswahl an werkzeug und baumaterial.

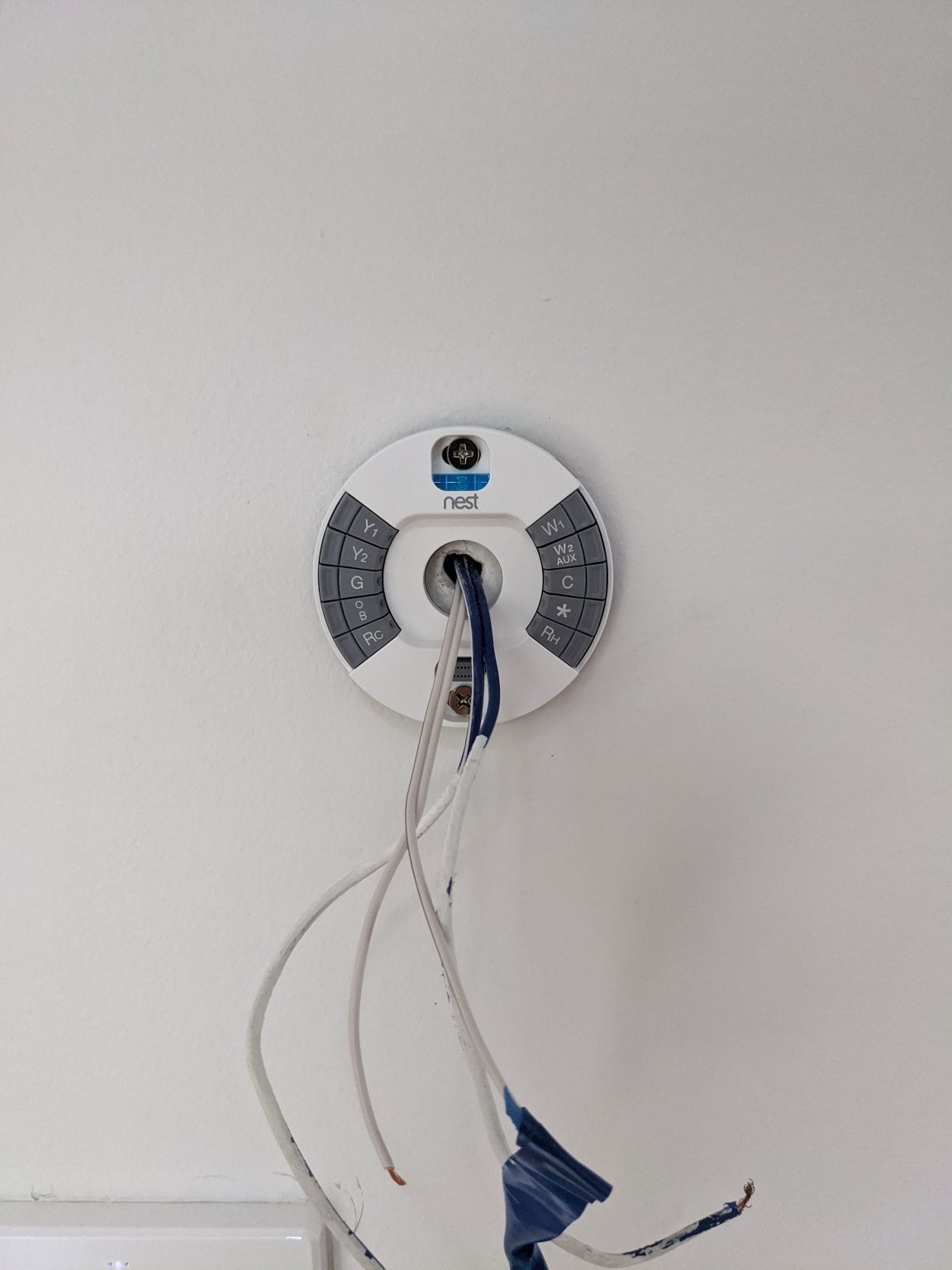

Pull the wires through the center of the base, then attach it to the wall with the screws. Install the thermostat base and pull all the wires out including the two white wires from power adaptor. Then wire them to respective terminal like in below image.

Make sure that each wire is directly connected to the nest thermostat and the wall. If there s an orange wire in the connector labeled both w and o b then you. Certified google nest 3rd gen learning thermostat w/base stainless steel t3007es.

Use this as a replacement base for nest learning thermostat 3rd generation in the united states and canada. • if there’s a white wire in the connector labeled both w and o/b, then you probably don’t have a heat pump. Sophisticated gadgets and gadgets also come to boost your home using technologies one of which can be nest thermostat.

Common or c wires are generally blue. Come back last night to a cold house. Ad unsere günstigsten preise für nest thermostate und ähnliches vergleichen.

The exposed wire should be straight. A nest thermostat’s star connector or o/b connector can be used to control several different system functions, depending on what type of system. Put this wire in the nest thermostat’s w connector.

Wiring, the nest base, or your thermostat's display. After removing your old thermostat, you just need to install the new one. The nest thermostat should pop off the base.

Many existing wired thermostats are in rooms that are rarely used the temperature they sense is warmer or cooler than homeowners feel so if the old thermostat isn’t in a good spot, install nest somewhere new using the included power plug and cord, or using the stand for nest learning thermostat (sold separately) the nest thermostat The nest thermostat draws power from the base unit via its rear connector when plugged in. Had a gen 2 nest learning thermostat for about 10 years that went out after new years, but never had issues.

Use a screwdriver, not a power drill to drive in screws for the nest base. Check the c terminal of the base to see if your nest thermostat base has a c wire attached to it. Requires a nest learning thermostat 3rd generation.

Make sure the base is secure in place and connect the wires. This option worked out great. Connect wires after all the wires are securely connected, push them down to make sure they.

Here is how you can do that: Then you might need to check the fuse on your heating and cooling (hvac) system. Put this wire in the nest thermostat’s * o/b connector.

Ad riesenauswahl an werkzeug und baumaterial. Straighten wires if they are uneven or bent from being stuffed behind the thermostat. Pull the nest away from the wall base and look at the wires.

Grasp the display's metal outer ring with your fingers and pull directly away from the wall, leaving the base behind. If you have a c wire installed or have only two wires in your thermostat. Identify a thermostat wire you’ll need to check your current thermostat’s wires to tell if your system is nest thermostat compatible, and which thermostat models it will.

Attach the display press the display onto the base until it clicks. 5.0 out of 5 stars. Before disassembling your nest thermostat, be sure that your hvac system is powered off.

Ad unsere günstigsten preise für nest thermostate und ähnliches vergleichen. Both can be used interchangeably, it does not matter which one you use. Take the cables of the transformer from behind the base unit and pass them from the center hole

Connect to the thermostat wires skip to the next step if you’re installing the nest thermostat on the stand and are using the usb cable for power. Use the installation steel and trim plate and place the nest base into place. After removing the thermostat base, gently wrap the wires around a pen or pencil so they don’t fall back into the.

Bei den preisen gibt's nix zum raunzen! Switch the power back on 9. You can connect the thermostat to a common wire transformer to provide a constant supply of power.

Nest thermostats require wires between 18 and 22 gauge, which is standard for residential heating and cooling systems. Instead, a tiny charge is taken from the hvac control connections. The heating wire will be pulsed, and the furnace will be turned on to draw some power.

In a typical configuration, the nest is not directly linked to a power source for battery charging. Unfortunately, upgrading your nest thermostat isn’t as simple as taking the old faceplate off and putting the new one in. All nest thermostat models use a different base.

Add a comment step 2 disconnect wires remember to turn off the power to your hvac system and the thermostat. One of the wire should be connected to c terminal and other to rc.
